Home > Products > Helical Worm Reducer > Newly Designed 4 Feet Veneer Peeling Line

Newly Designed 4 Feet Veneer Peeling Line

  • Newly Designed 4 Feet Veneer Peeling Line
  • Newly Designed 4 Feet Veneer Peeling Line

Newly Designed 4 Feet Veneer Peeling Line

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 20 Days
    Packaging: Export packing
    Productivity: 50-120cbm per 8 hours
    Brand: SHINE
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 20 set per month
    Certificate: CE ; ISO
    HS Code: 8465960000
    Port: Qingdao,Tianjin

Product Description


4 Feet Veneer Peeling Line Introduction

SHINE 4 feet veneer peeling machine line is the most common model veneer peeling machines in woodworking field. Normally the wood veneer peeling machine will be used together with veneer dryer machine. the working efficiency will be highly improved by Shine veneer peeling line and drying line. And the veneer splicing machine is suitable for the eucalyptus, pine, cotton wood and another log.The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.Wood veneer peeling machine is a very technical equipment in plywood line equipment.

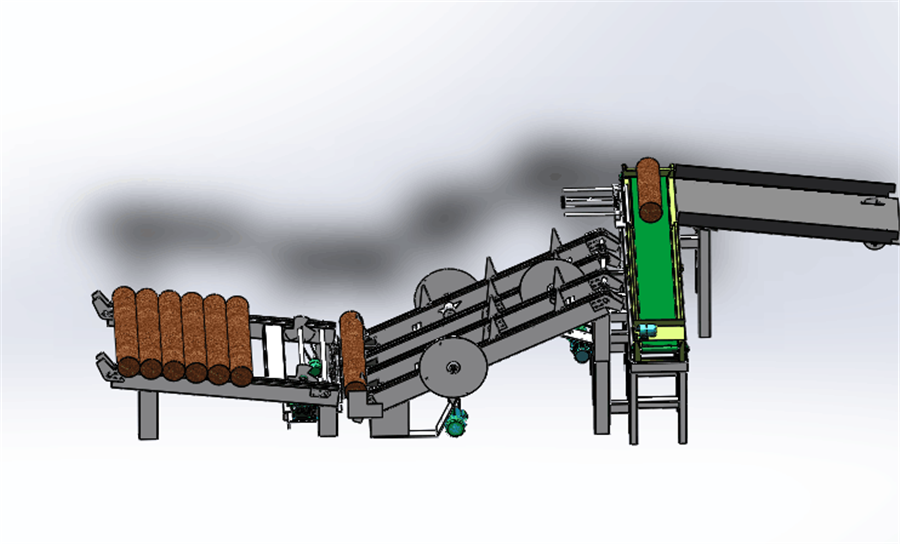

Layout For 4 Feet Peeling Line

The Main Features of SHINE 4 Feet Veneer Slicing Machine

1. This product has digital control system; high strength wear-resistant; stable rear axle rotation system; rotating single box automatically adjust the cutter joint system.

2.Its stable structure can be suitable for wood, eucalyptus, maple, pine wood.

3.The integrated structure improves the space utilization rate, reduces the workers quantity.

4.Automatic adjustment of cutting system, make the skin more smooth, uniform. The large diameter wood veneer.

5.This machine with auxiliary device for round, can keep the whole standard tail plate.

The Whole Veneer Peeling Production Line Process

1.Log conveyor

Log Cutting Machine

DESCRIPTION

UNIT

PARAMETERS

Maximum diameter of conveying

mm

600mm

Linear speed of host machine

m/min

30m

Transmission motor power

kw

1.5kw+1.5kw

Reducer type

Enlarged Worm Gear Reducer







2.4 Feet excircle barking machine(milling type)

Log Circle Finding Machine

DESCRIPTION

UNIT

PARAMETERS

Length of barking log

mm

970mm-1270mm

Diameter of barking log

mm

Maximum 600mm-Core 100mm

Barking thickness range

mm

1.0mm-4.0mm

Main line speed

m/min

60m

The motor power

KW

Main motor: 7.5KW+7.5KW

Hydraulic station motor:5.5KW

Milling motor : 11kw

Reducer type

R87

Host R Helical Gear Reducer

Main function

Barking of logs

Drum diameter 150 mm















3.Feeding machine for peeler

Log Feeder


DESCRIPTION

UNIT

PARAMETERS

Maximum diameter of conveying

mm

500mm

Linear speed of host machine

m/min

30m

Transmission motor power

kw

1.5kw+1.5kw

Reducer type

RV90

Enlarged worm Gear Reducer









4.High configuration peeling machine


DESCRIPTION

UNIT

PARAMETER

Log length

mm

970mm-1270mm

Log diameter

mm

Max:500mm-core :28mm

Thickness range

mm

0.5mm-4.0mm

Main line speed

m/min

60-120(speed adjustable)

Motor power

KW

Double roller motor: 11KW

Single roller motor:5.5kw+5.5kw

Feed motor: 11KW

Shear motor:2.2kw

Rubber roller transfer motor:2.2kw

Reducer model

R87

R helical tooth reducer

Size

mm

4300mm--1700mm--1600MM

Weight

kg

6000kg













5.Vacuum absorption collecting machine

Veneer Collecting Machine


DESCRIPTION

UNIT

PARAMETERS

Collect plate size

mm

1300X670 mm 1300X500 mm 1300X880mm 2 stack

The scope of thickness

mm

1.0mm--- 3.6mm

Linear speed of host machine

m/min

60m-120m adjustable

Power of vacuum absorption motor

KW

4kw

Transmission motor power

kw

1.5kw+1.5kw+1.5kw+1.5kw

Lifting motor power

kw

4kw

Reducer type

RV90-110

Enlarged worm gear reducer
