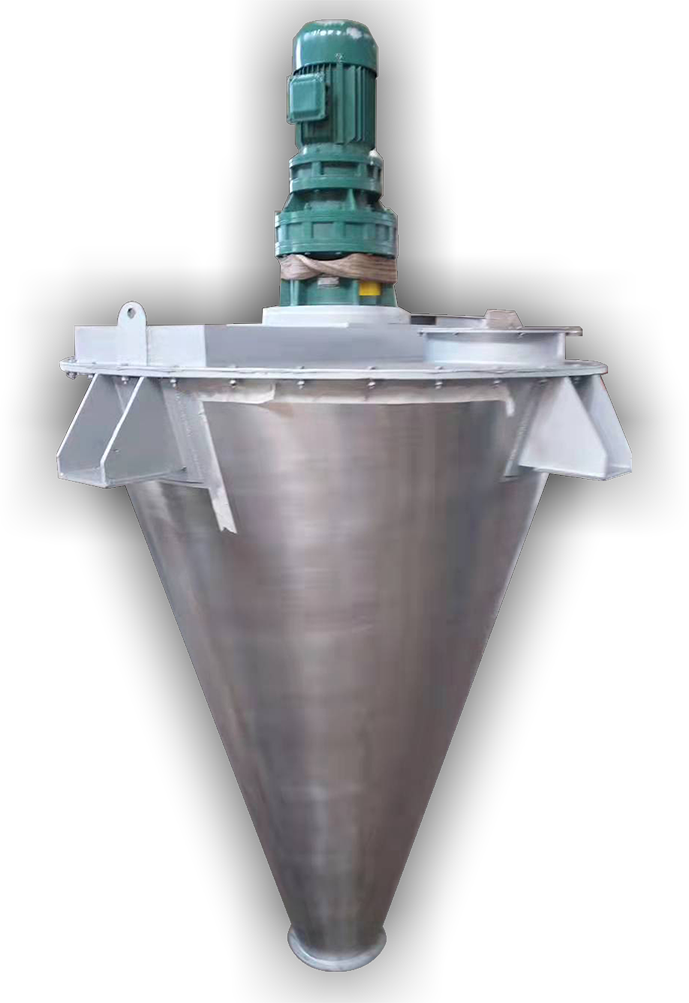

Pepper powder double spiral cone mixer

  • Pepper powder double spiral cone mixer
  • Pepper powder double spiral cone mixer

Pepper powder double spiral cone mixer

    Min. Order: 1 Set/Sets
    Packaging: 1) Covered with waterproof plastic film 2) Then fixed in export wooden carton or in container
    Productivity: 50kg/batch
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 30sets/month
    HS Code: 8479820090
    Port: Shanghai,Ningbo,Qingdao

Basic Info

Model No.: DSH100

Product Description

Double Spiral MixerDouble Spiral Cone Mixer


1.WORKING PRINCIPLE

By the revolution of the double helix powder make circular motion along the wall of the cone, screw blade rotation, the powder to radial motion, pyramidal central discharge powder from cone to upwelling and helical circular surface discharge spiral orbit inside the mixer, the combination of rotation, the four kinds of powder flow form, namely convection shear diffusion permeability of compound motion, Therefore, the powder can quickly achieve uniform mixing in this mixer


2.MAIN APPLICATION

This machine is a new type of high efficiency and high precision mixing equipment, using a set of motor and cycloid Gear Reducer into revolution and rotation, using the long and short stirring spiral rotation motion and two screw rotation motion combined principle, so that the proportion of material with a wide gap to achieve ideal mixing degree, mixing time is short, the effect is good

Widely used in food pharmaceutical chemical pesticide feed petroleum metallurgy mining building materials industrial coatings and other industries of a variety of powder mixing



3.FEATURES

This machine is a new type of high-efficiency, high-precision mixing equipment, using a set of motor and cycloid gear reducer into revolution and rotation, using the long and short stirring screw rotation movement and two screw rotation movement combined principle, so that the proportion of material with a wide gap to achieve the ideal mixing degree, mixing time is short, good effect. Widely used in pharmaceutical food chemical pesticide feed petroleum metallurgy mining building materials industrial coatings and other industries of a variety of powder mixing


4.TECHNICAL PARAMETER

Model Capacity(kg/batch) Loading coefficient Loosen density Material granulary(mesh) Power(kw) Size(mm) φ Weight(kg)
DSH100 50 0.6 0.8 20-600 1.5 700x1400 300
DSH200 100 0.6 0.8 20-600 2.2 890x1850 350
DSH300 150 0.6 0.8 20-600 3 1000x1900 600
DSH500 250 0.6 0.8 20-600 4 1180x2290 800
DSH1000 450 0.6 0.8 20-600 5.5 1500x2700 1200
DSH2000 900 0.6 0.8 20-600 7.5 1800x3500 1800
DSH3000 1400 0.6 0.8 20-600 11 2120x4000 2200
DSH4000 1900 0.6 0.8 20-600 15 2250x4080 2600
DSH5000 2400 0.6 0.8 20-600 15 2530x4300 3000
DSH6000 2800 0.6 0.8 20-600 18.5 2750x4300 3500
DSH8000 3800 0.6 0.8 20-600 18.5 2950x5390 3700






Remarks:
1.Delivery:15 working days in factory
2.Payment:30% advance,70% before shipping by Paypal/TT
3.We are manufacturing company with the factory price and high quality
4.We can provide offer with FOB,CIF,CFR as consumer requirements

5.If u feel interested in this double spiral cone mixer or screw conveyor or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or capsule polishing machine or capsule counting machine etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
